REEZOLDINI Jericho S4

order

ABOUT THE PRODUCT

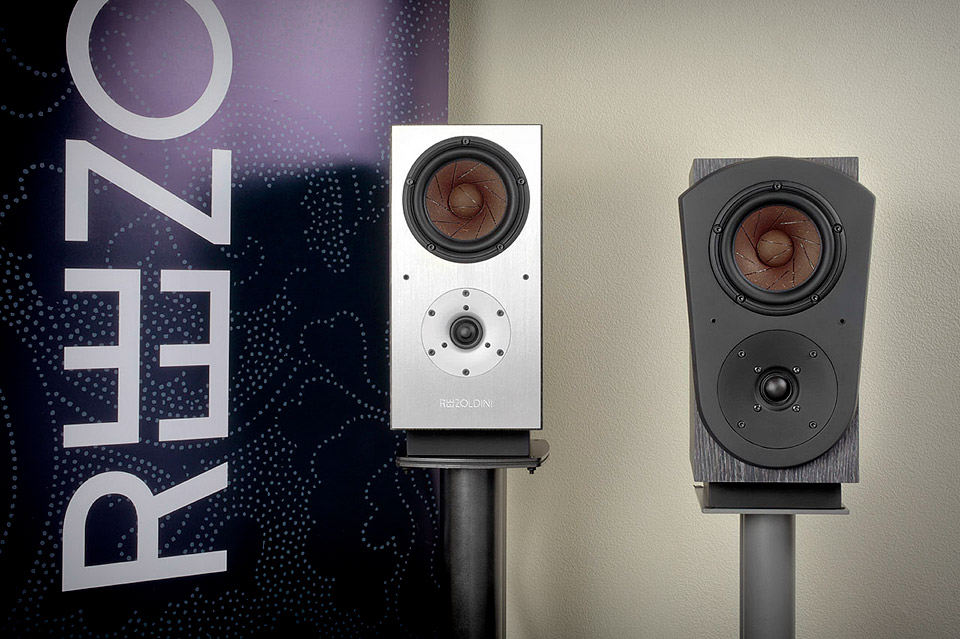

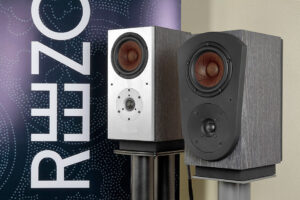

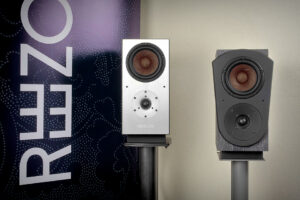

REEZOLDINI Jericho S4 bookshelf speakers produce high quality sound. Clear and transparent highs, perfect microdynamics, open mids, decent bass. Elegant looks.

DESIGN

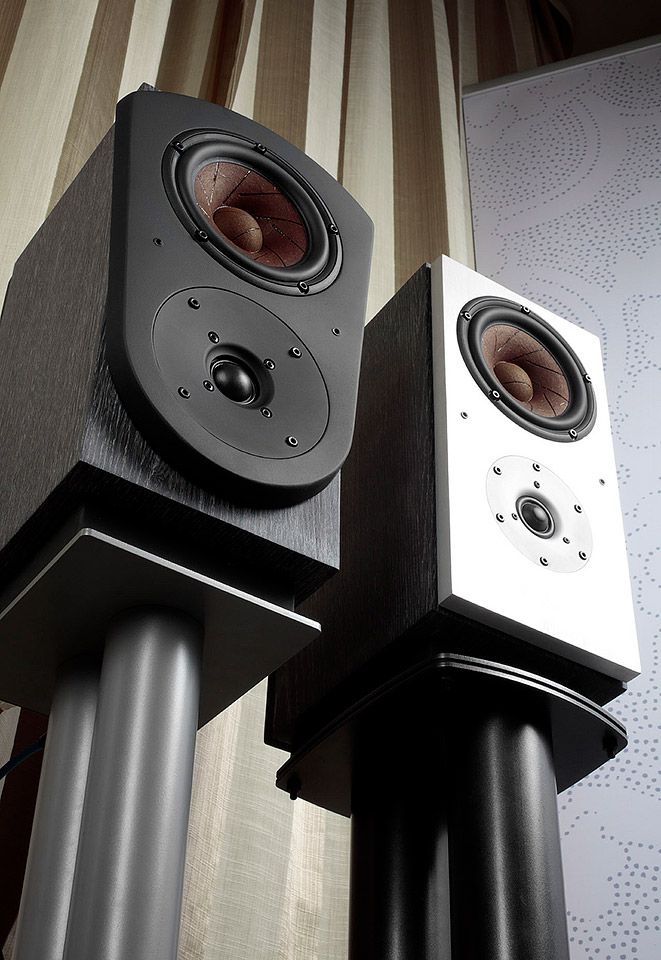

Systems are encased in a minimalistic design, austere in its own way, therefore the speakers may easily fit in both high-tech or minimalist, and classic room designs.

ABOUT THE SOUND

The signature of REEZOLDINI Jericho M speaker systems is the realism of the music it delivers, the widest versatility in genres, large dynamic range, high accuracy of the details, spatial impression, purity, and power. REEZOLDINI Jericho M speaker system is incredibly music-oriented, these speakers convey emotions really well and are capable of giving you a unique musical experience.

DRIVERS

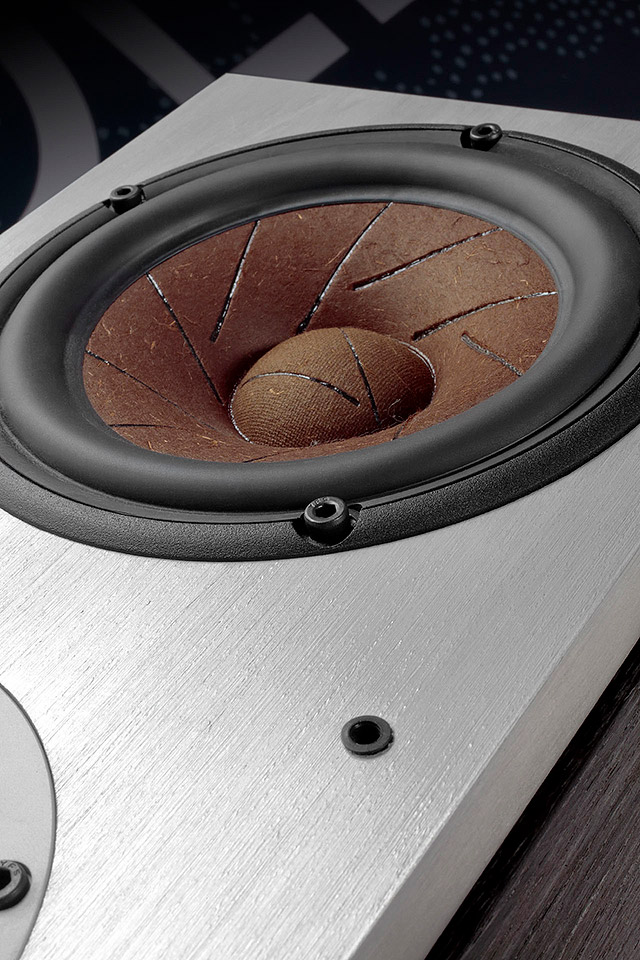

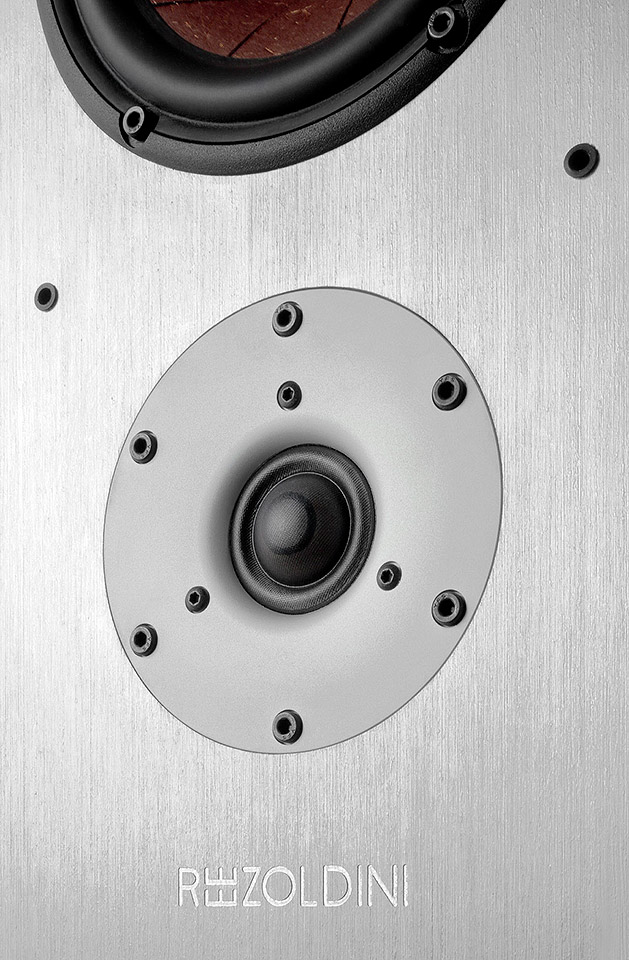

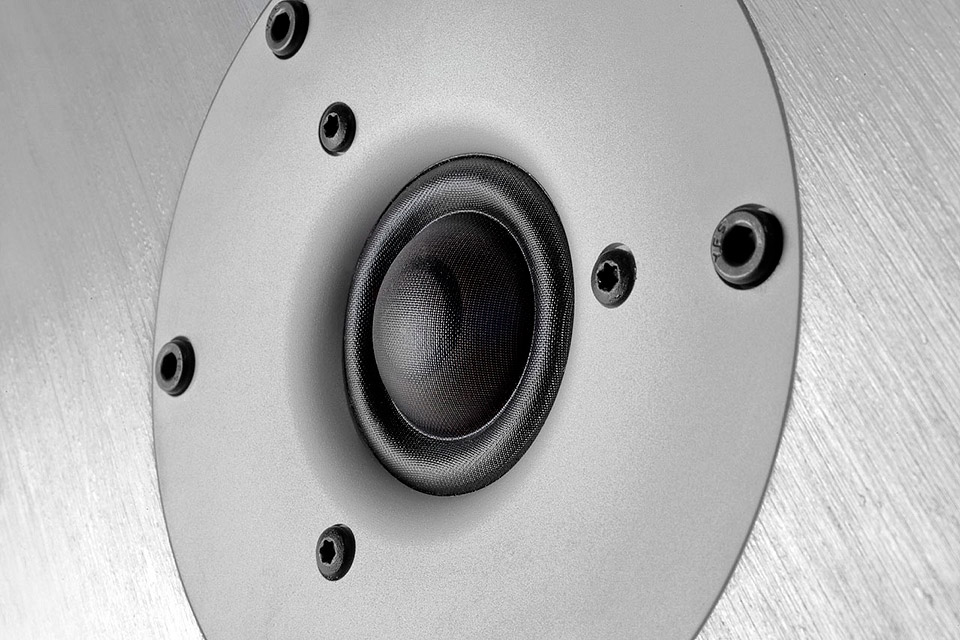

Jericho S4 is a 2-way speaker system. Two active Scan-Speak drivers and two passive Scan-Speak revelator radiators manufactured at the request of Reezoldini are installed in the speakers. Such powering of the speakers provides solid linearity, gives excellent depth, attack, and articulation of bass. Drivers of the same size and type have the same response rate of their moving elements, and therefore they give synchronous response and wide directional pattern. Identical tone pattern of all drivers has a beneficial effect on sound.

FILTERS

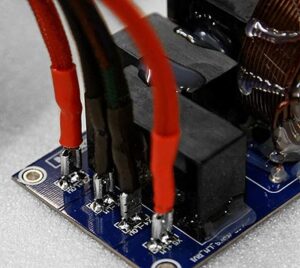

Filters with split frequency of 2,400 Hz are used in REEZOLDINI Jericho S4 — the upper one of the third order, the lower one of the second order. Inductance coils are large with an air core.

CABINET

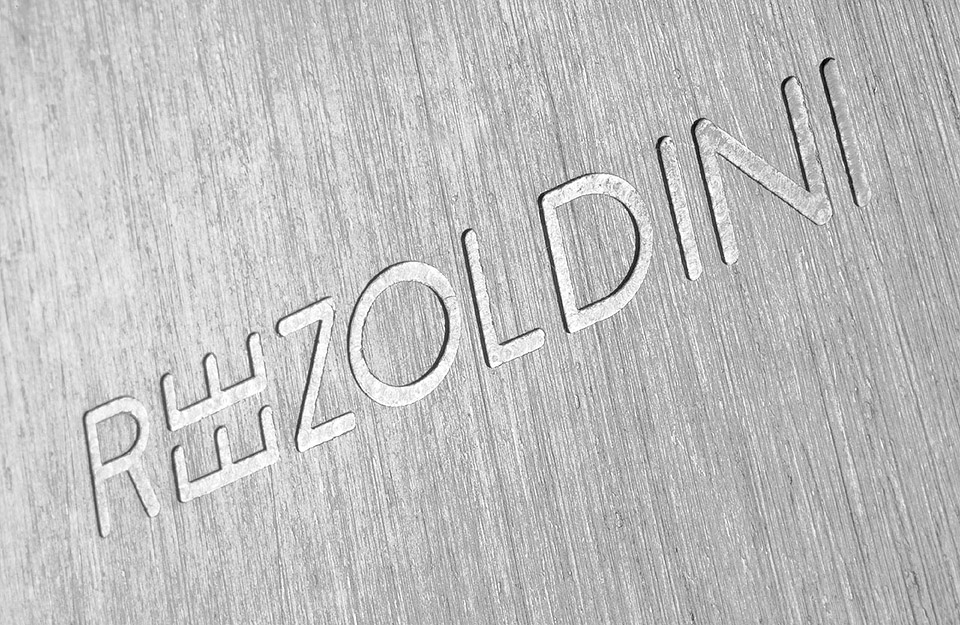

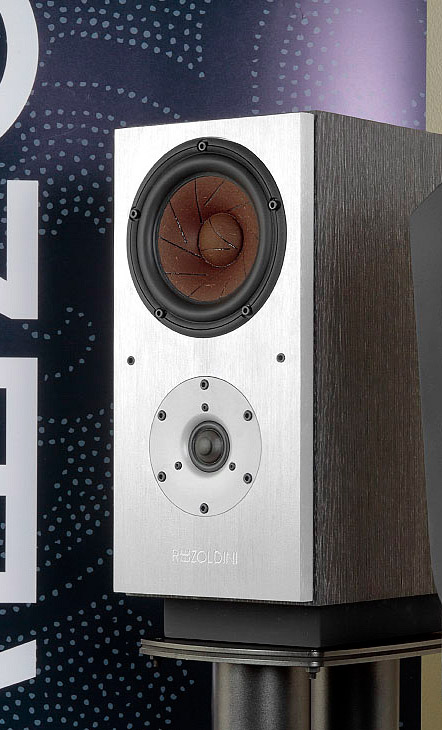

The cabinet of Jericho M is made of MDF. Wall thickness ranges from 25 to 43 mm. The front panel is a 16 mm solid aluminum plate with milled openings for the drivers. The front panel is attached to the cabinet through a soundproofing compound.

FINISHING

Finishing colour for the Standard option: Black Apricot Veneer with aluminum panel. Custom enamel colour (1500 options) or cabinet veneer finishing (44 options) are available.

WARRANTIES

Warranty for REEZOLDINI Jericho S4 Speakers is 5 years.

Set contents

2 loudspeakers

System Type

2-Way

Impedance

4 Om

Frequency response

45 - 32500 Hz

Weight

11,4 kg

Sensitivity

88 dB

Recommended power amplifier

20 - 200 W

Dimensions (stand) (WxHxD)

180 x 360 x 252

Spikes to prevent floor damage

Available Finishes

Over 1,500 types of finishing (veneer, enamels, lacquer)

Acoustical radiation

Monopolar

Enclosure type

Bookshelf, passive, passive radiator

Grille

Dismountable

Purpose

Bookshelf Speakers

Cable Connection

Gold plated binding post / 4mm Plugs, mono-wiring

Warranty

5 years

PIANO LACQUER

High gloss black

High gloss white

Satin black

Satin white

WOOD VENEER FINISHING

VENEER

REEZOLDINI Audio speaker systems may be finished with 44 types of veneer. Finishing may be glossy or matte.

COMBINATIONS

Finishing may be combined and may consist of different materials and coatings.

EXCLUSIVE

In addition to the finishing options indicated in our catalog, you may order a finishing made of unique wood species exclusively for you.

ADD-ONS

When ordering individual exclusive finishing, the cost of a speaker system will be increased.

1 Zebrano 50 SE

<span>ENAMEL</span> COATING <br> AS PER RAL

ENAMEL COATING
AS PER RAL

Over 1,500 color options. The coating may be glossy or matte.

DETAILS OF SOUNDCARE
SUPERSPIKES SUPPORTS

LOAD DISTRIBUTION

REEZOLDINI speakers stands on three SuperSpike supports. Since the three supports are always coplanar, they evenly distribute the load among themselves with a lateral vector of 120 degrees. Such distribution favorably affects the sound, since equivalent vectors of 120 degrees are mutually cancelled out.

ISOLATION

SuperSpikes supports reduce the mechanical connection of speakers to the floor surface. Reducing the distribution of parasitic vibrations reduces the effect of these vibrations on the sound reproduction process. Concentration of speaker weight on small surfaces leads to high pressure at the point of support. Such concentration provides effective suppression of own internal resonances, gives a high bass response, and has a beneficial effect on the sound stage.

SCRATCH-FREE

SuperSpike solves the known problem of scratches, which often occurs when using ordinary spikes. The SuperSpike undismountable design is with the a specially shaped spike and a special base plate, which are combined in a plastic casing allowing the user to move equipment without scratching the floor.

general DETAILS

ODEON SPEAKERS — HISTORY

SPEAKERS ARE WIRED BY JERICHO CABLE

REEZOLDINI Jericho reference loudspeaker cables are used inside the speaker systems. Cables are made using a unique REZOLDINI technology. Within the Jericho series, cables for wiring inside speakers, interconnect cables, speaker cables, and network cables are designed. The use of all the above cables in a sound setup gives the maximum result in sound quality.

ADDITIONAL PACKAGE OPTIONS

REEZOLDINI Jericho M speakers may be equipped with REEZOLDINI Jericho precision speaker cables, which were developed specifically for this series of speakers. Jericho cables are able to unlock the full potential of technical excellence of these systems. The use of a specially designed speaker cable allows achieving the maximum sound quality of this speakers.
